Posts for: #Manawydan Archive

Gump Studio

Features

This program allows you to build gump and then save them as file or scripts for use in your server (Sphere, RunUO, …)

Screenshots

Downloads

  • GumpStudio_1_8_R3.zip
  • GumpStudio_1_8_R3_quinted-02 – 1.8q.02
    • There is very usefull tool called “Gump Studio” maded by Bradley Uffner. But it has little problem that is critical for me – it crashed if you try to use сyrillic alphabet. That was there reason why this moddification appears. As it appeared Author was greedy for chars cache and limit it little more then 1000 chars, that cause exception as сyrillic alphabet in unicode use codes 1025 and 1040-1105, so after I encrease cach size to 1120 the problem was solved. (If someone will need use chars above 1120 – write, it’s easy to encrease it more). Also i made this changes:
      • Add property “Partial Hue” for Labels, as client in most cases use this behaviour.
      • Add property “Unicode” for labels, that switch using fonts between ASCII and Unicode.
      • Add all UO fonts (13 unicode and 10 ASCII, originaly there where only 3 fonts).
      • Add HS support, so it’s possible to use items ID with indexex up to 0x10000.
      • Increased working area from 800×600 up to 1600×1200. This allows to designe large gumps.
      • Fixed bug with changing client path (by default GumpStudio first checked registery, so if you have installed client it becomes impossible to load mul files from custom path)

Manawydan Archive Downloads

CZ: Program na tvorbu různých gumpů pro scripty.

[Read More]

CentrED+

Features

“CentrEd+” is the modified map and statics CentrEd editor of the last version 0.6.1 (by Andreas Schneider). Main advantages of “CentrEd+” are: better client data files support, group filtering for tiles, new tools, brushes, multi objects, runuo integration, updated and improved multi languageinterface, many other new features. The editor is the client-server application so it’s possible to edit and look through the maps for different people at the same time, besides the program allows to work with maps of any size. Originaly this modification was made espesially for the Quintessence server, but now after rather big work it’s able for all UO commnunity.

[Read More]

CentrED

CentrED stands for Centralized Editing. It is a Client/Server based map editor for Ultima™ Online.
The intention behind this is, that the only available GodClient is rather old and was never really supported by any server emulator (at least not that I know), but I wanted the ability for several people to work on the terrain and statics together, without having to constantly transfer their current state.

Features

  • Complete serverside map. All blocks are transfered on request.
  • Modify Terrain
  • Add, delete, move and hue Statics
  • Change the altitude of Terrain and Statics
  • Account management with four accesslevels (None, Viewer, Normal and Administrator)
  • Restrict clients write access to specified regions (some sort of group management)
  • Integrated Chat
  • Client list with ability to jump to other clients position
  • Virtual Layer to ease working on roofs or in black areas
  • Large scale editing (move/copy, delete, draw, insert whole areas of the map)
  • Easily jump to locations stored in a list or via the radar view of the whole map
  • Ability to undo the last set of changes
  • Preview changes before actually performing them
  • Renders the map similar to the UO Client
  • Shows animated tiles
  • Show different light level and display light sources
  • Support as many different Statics as the TileData file can hold
  • Server and Client for 32bit Windows and Linux

Screenshots

[Read More]

Filozofie stavění (Medieval Building Philosophy)

Toto není návod, ale pár základních rad a zásad pro stavění. Nejdříve je podstatné pochopit, o jakou stavbu jde a podle toho se přizpůsobit.

Vžití se do prostředí

Doporučuje se vžít do situace člověka, který se pohybuje v daném čase a místě. Pokud jde o fantasy zasazenou do středověku, měl by stavitel myslet jako středověký člověk. Stavby by neměly být dokonalé — měly by vypadat přirozeně.

Podlahy

Kombinujte položené položky tak, aby budily dojem užívání (“random podlahy”). Kolem dřevěných podlah udělejte ohraničení. Domy ve městech bývají zvýšené, pak se pokládá podlaha na podložku kvůli izolaci.

[Read More]

Jak na Static? (How to Use Static Tool)

Návod k modulu Static Tool, který je obsažen v Axisu a je určený pro zmrazení dynamických itemů na statické do mapy.

Obecný popis

Static Tool se nachází v Axisu na kartě Misc vpravo. Po kliknutí se otevře okno se dvěma hlavními zobrazeními — v levém okně vidíte celkovou mapu, v pravém určitou vybranou část s detailním náhledem. Náhled zobrazuje pouze statické itemy již obsažené v souborech statics0.mul a staidx0.mul.

Mezi okny je kompas umožňující pohyb po mapě. Okna lze ovládat myší — kliknutím na místo v levém okně se zobrazí ve středu. Možné je také označit region myší.

[Read More]

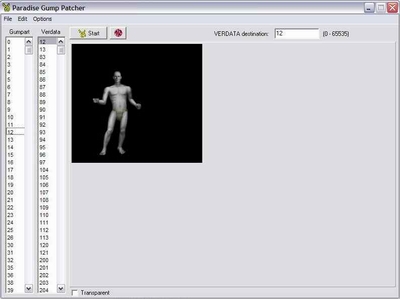

Jak na Verdata 1 - Paradise Gump Patcher

Tento seriál o tvorbě grafiky věnuji programu Paradise Gump Patcher, kterým lze předělat většinu oken. První díl se zabývá seznámením s programem.

Úvod

Všechno kódování obrázků je v nejhorším možném formátu — BMP. Paradise Gump Patcher se nijak neinstaluje — jsou to 3 soubory. Rozbalte je do adresáře s UO a spusťte PGP.

Popis rozhraní

Po spuštění a kliknutí na START se načte seznam itemů:

  • Gumpart: obrázky, které UO obsahuje a lze je použít pro verdata přímo
  • Verdata: bitmapy, které se právě používají a načítají se při spuštění hry

[Read More]

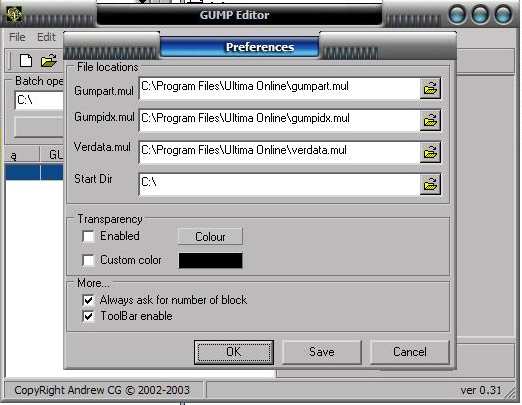

Jak na Verdata 2 - GUMP Editor

GUMP Editor je momentálně nejlepší program pro úpravu gumpů (grafická statická data). Na rozdíl od Paradise Gump Patcheru zvládá rychlé vykreslování obrázků a může pracovat jen s určitou částí grafických souborů k vytvoření patche.

Instalace

Program se nijak neinstaluje, pouze si nakopírujete na harddisk a spustíte. Poté nastavte v Settings cesty k souborům.

FILE

New, Open, Save, Save as, Export, Import, Exit

EDIT

Insert, Add, Delete, Clear, Sort, Save as BMP, Save as DAT, to Clipboard, from Clipboard

[Read More]
This is an archive of Ultima Online tools from websites that no longer exist. Content is provided as-is.
