CentrED stands for Centralized Editing. It is a Client/Server based map editor for Ultima™ Online.
The intention behind this is, that the only available GodClient is rather old and was never really supported by any server emulator (at least not that I know), but I wanted the ability for several people to work on the terrain and statics together, without having to constantly transfer their current state.

Features#

  • Complete serverside map. All blocks are transfered on request.
  • Modify Terrain
  • Add, delete, move and hue Statics
  • Change the altitude of Terrain and Statics
  • Account management with four accesslevels (None, Viewer, Normal and Administrator)
  • Restrict clients write access to specified regions (some sort of group management)
  • Integrated Chat
  • Client list with ability to jump to other clients position
  • Virtual Layer to ease working on roofs or in black areas

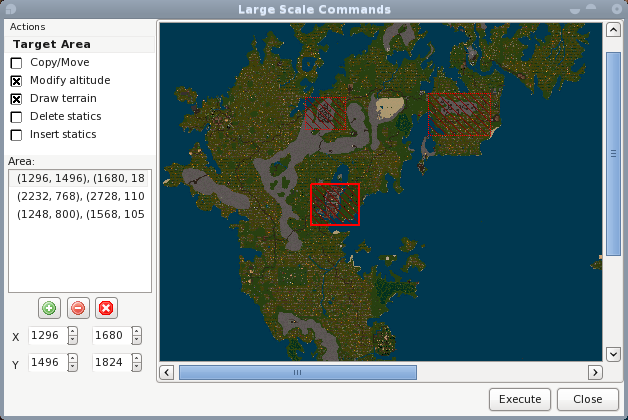

  • Large scale editing (move/copy, delete, draw, insert whole areas of the map)
  • Easily jump to locations stored in a list or via the radar view of the whole map
  • Ability to undo the last set of changes
  • Preview changes before actually performing them
  • Renders the map similar to the UO Client
  • Shows animated tiles
  • Show different light level and display light sources
  • Support as many different Statics as the TileData file can hold
  • Server and Client for 32bit Windows and Linux

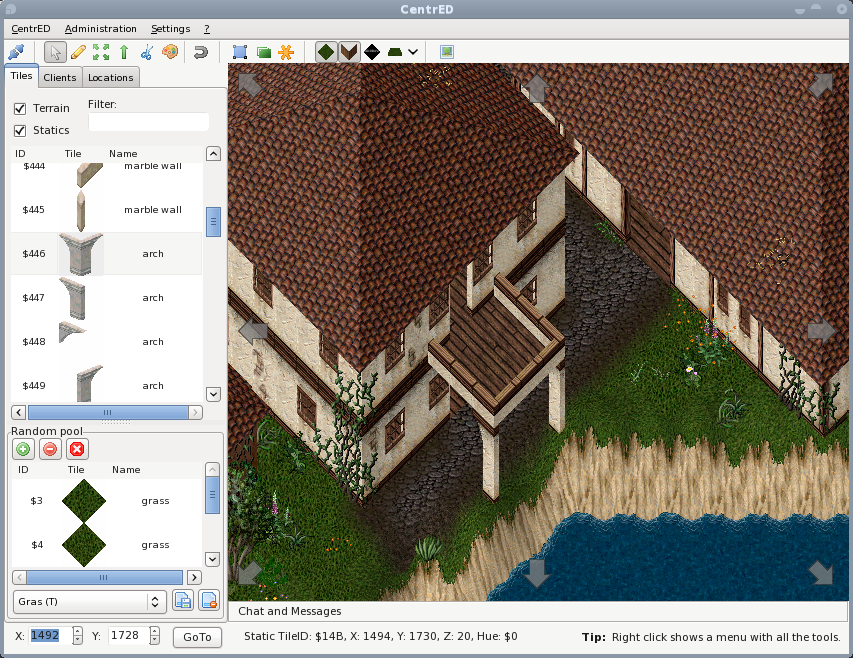

Screenshots#

Downloads#

Manawydan Archive Downloads#

CZ: Program na vzdálenou úpravu souborů mapy.

Manawydan screenshot

Official v0.6.3 Downloads (from Redmine)#

Available at redmine.aksdb.de (may require login):

FileSizeMD5
CentrED_win32_0-6-3.exe1.02 MBe16cd90500c3753cef7c24f252950783
CentrED_linux_i386_gtk2_0-6-3.tbz1.75 MBf74d4f52bd5434fdd7cd168c8fa936df
cedserver_win32_0-6-3.zip213 KBda1066b5aaa3ba4aac2b93c798fdeb67
cedserver_linux_i386_0-6-3.tbz236 KBa8789f7e881cf61df0a46afc4b8ef476

Server Setup#

CentrED uses a client-server architecture. The server is a command-line application.

Requirements: i386 Windows or Linux (runs on 64-bit too), minimum 100MB RAM, an open TCP port.

Configuration: The server looks for a config file matching its name with .ini extension (typically cedserver.ini). On Windows, it auto-prompts on first run. On Linux, launch with --init parameter. Default port: 2597.

Important: Map files load with exclusive read/write permissions — no simultaneous access by other programs. RadarCol.mul and Tiledata.mul load as read-only.

Map File Reference#

MapDimensionsFileSize
Felucca (pre-ML)768x512map0.mul77 MB
Felucca (ML)896x512map0.mul89 MB
Trammel (ML)896x512map1.mul89 MB
Ilshenar288x200map2.mul11 MB
Malas320x256map3.mul16 MB
Tokuno181x181map4.mul6 MB

Each map consists of three files: mapX.mul, staidxX.mul, staticsX.mul.

NoDraw Tiles#

CentrED can hide certain tiles via a nodraw.txt config file. Format:

  • T$2 — hide terrain tile 2
  • S$2198-$21A4 — hide static tiles in range 0x2198 to 0x21A4

Uses hexadecimal notation prefixed with $. The client loads from the application directory, user config directory, and MUL data directory.

Modern Alternative: CentrED##

CentrED# is a complete C# rewrite of CentrED by kaczy93. It supports Windows, Linux, and macOS (including Apple Silicon). Active development — see the dedicated page on this archive.
